Worklog PS2 90004 New trim

Fly_5

.
Joined
Apr 4, 2022
Messages
68
Likes
110
Location
Spain
Portables
Megadrive portable / PS2 Next-G portable

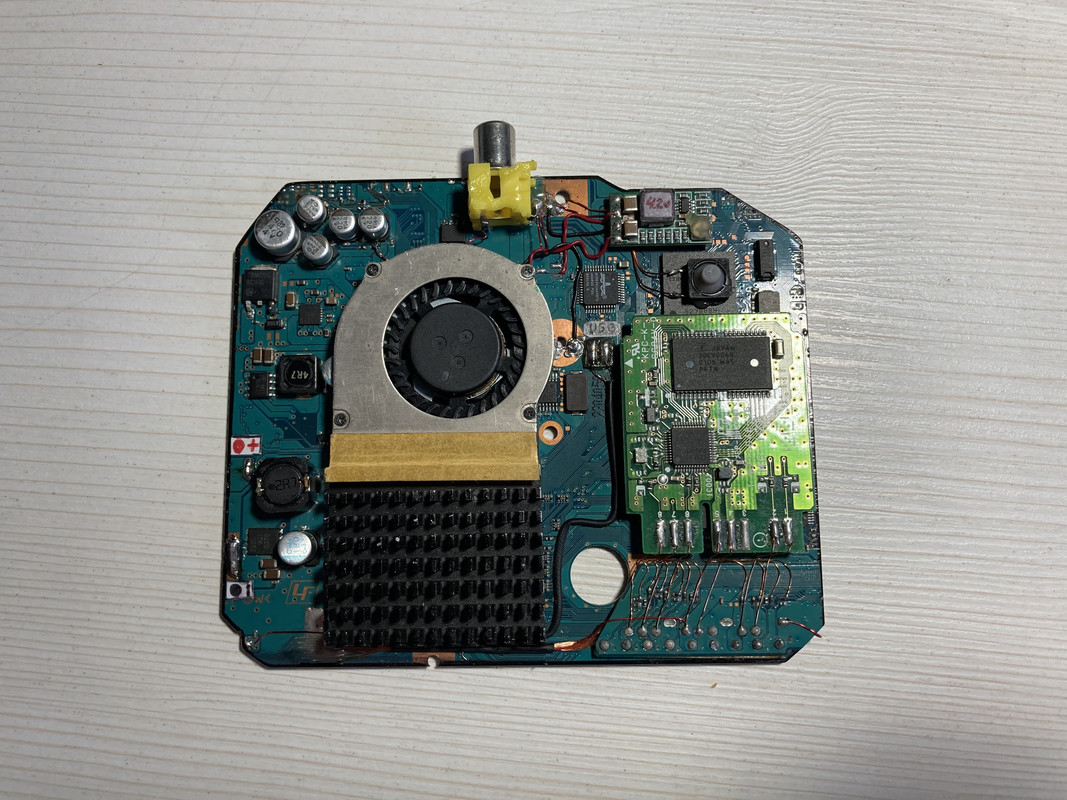

Hi guys, I wanted to share with you the cut I made to a 90004 plate, it is a little complex but it is very small 93 x 110 practically the same size as the 79001 with the advanced cut, with the advantage that you do not need custom regulators.





Joined
Sep 27, 2016
Messages
386
Likes
760
Awesome, nice work! Could you post a picture of the bottom side of the motherboard as well?

Joined
Dec 30, 2021
Messages
53
Likes
10
Friend what you did there near the solid capacitors? Turned on trails?
